Rubber Gym Flooring: A Practical Installation Guide
A gym floor takes more punishment than any other floor in a building: dropped weights, sliding machines, sweat and constant foot traffic. Picking the right rubber matters, but most gym floors that fail early fail because of what was underneath them.
What makes a gym floor last
Every rubber gym floor comes down to three things. Get them right and the floor will take years of heavy use. Get one wrong and you will see seams opening, edges curling or dents where the weights land.
A flat, sound base
Rubber follows whatever is under it. Cracks, dips and old adhesive all show through.
The right thickness
Matched to what happens on it: cardio, free weights or heavy drops.
Properly secured
Glued and seamed so it stays put, instead of creeping under machines and lifting.
Rolls, tiles or mats?
Rubber gym flooring comes in three main formats. Most of the black floors with coloured flecks you see in gyms are recycled rubber, sold in all three.
| Format | Best for | What to know |
|---|---|---|
| Rolls | Large open areas: commercial gyms, studios, school and community fitness rooms | Fewest seams and the cleanest look. Heavy to handle, and usually glued down for commercial use. |
| Interlocking or square tiles | Home gyms, smaller rooms, strength corners | Easier to handle and to replace one damaged tile. More seams, so the base needs to be flat for them to sit tight. |
| Heavy mats and platforms | Lifting areas where weights are dropped | Thick rubber that absorbs impact. Often laid on top of a rolled floor in the zones that take the most abuse. |
How thick should it be?
Thicker is not automatically better. It costs more, it is harder to transition to other floors, and for cardio it can feel soft under machines. Match the thickness to the use.
| Use | Typical thickness |
|---|---|
| Cardio machines, stretching, general fitness | 1/4" (6 mm) |
| Free weights and strength training | 3/8" (8–10 mm) |
| Heavy drops, deadlifts, Olympic lifting | 3/4" and up, usually tiles or a lifting platform |
The manufacturer's data sheet for the product you choose is the final word. It lists the recommended uses, the adhesive to use, and how the material should be acclimatized before it goes down.

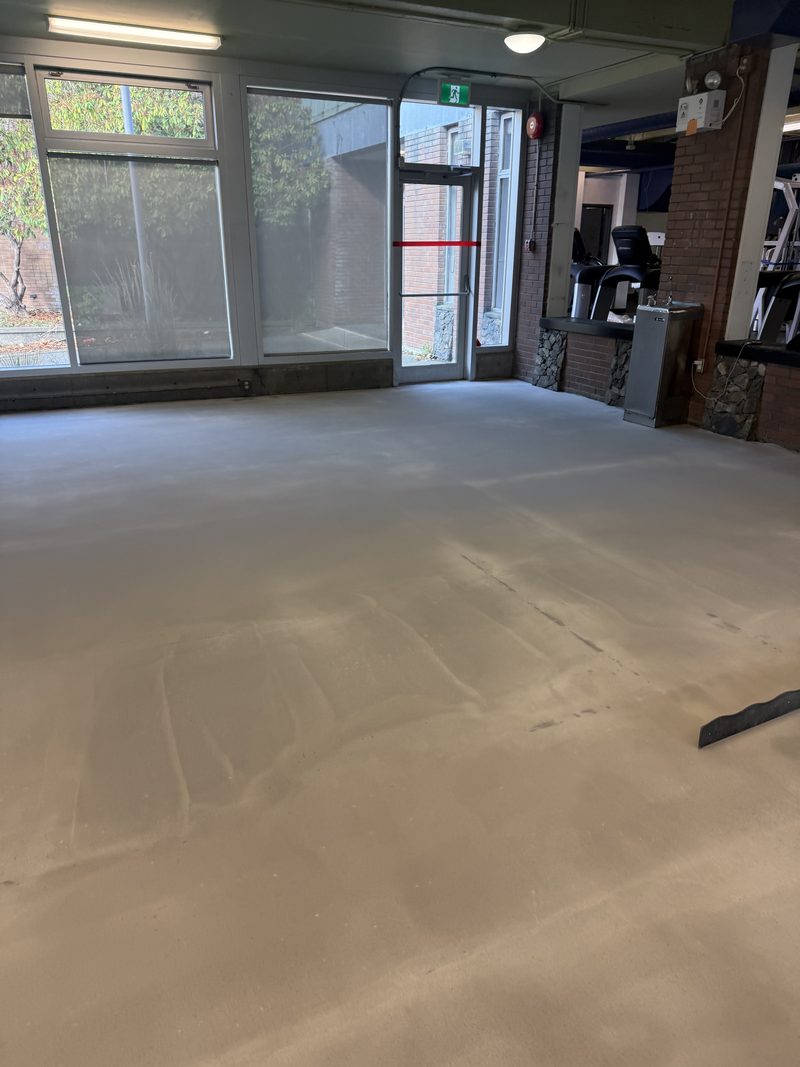

The concrete is the real job
Most gyms sit on a concrete slab, and the slab decides how the finished floor looks and performs. Before any rubber goes down, the concrete should be:
Flat

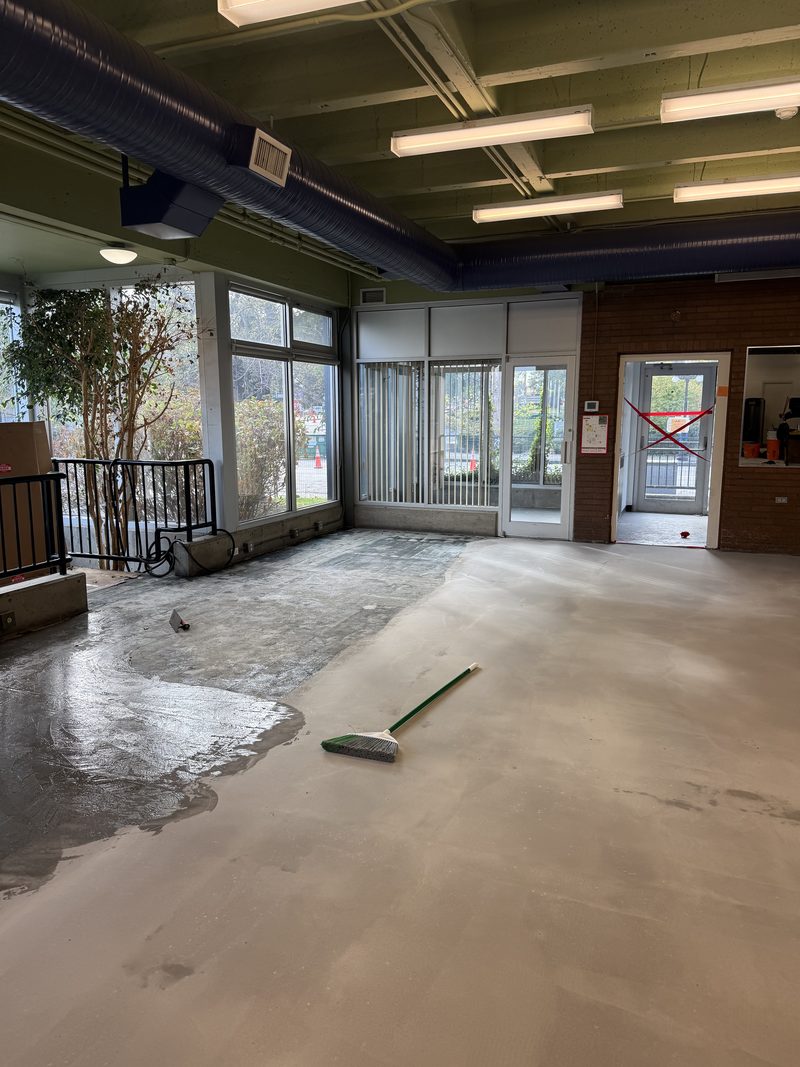

Low spots and cracks filled, and the surface skim-coated where needed. A dip under rubber becomes a soft spot where weights land.
Clean
Old adhesive, paint, sealers and dust removed. Glue only holds as well as the surface it bonds to.
Dry
Checked for moisture. Damp concrete is one of the most common reasons adhesive lets go and edges start to lift.
Glue-down or loose-lay?
Rubber expands and contracts with temperature, and gym equipment pushes it around. How it is secured decides whether it stays put.

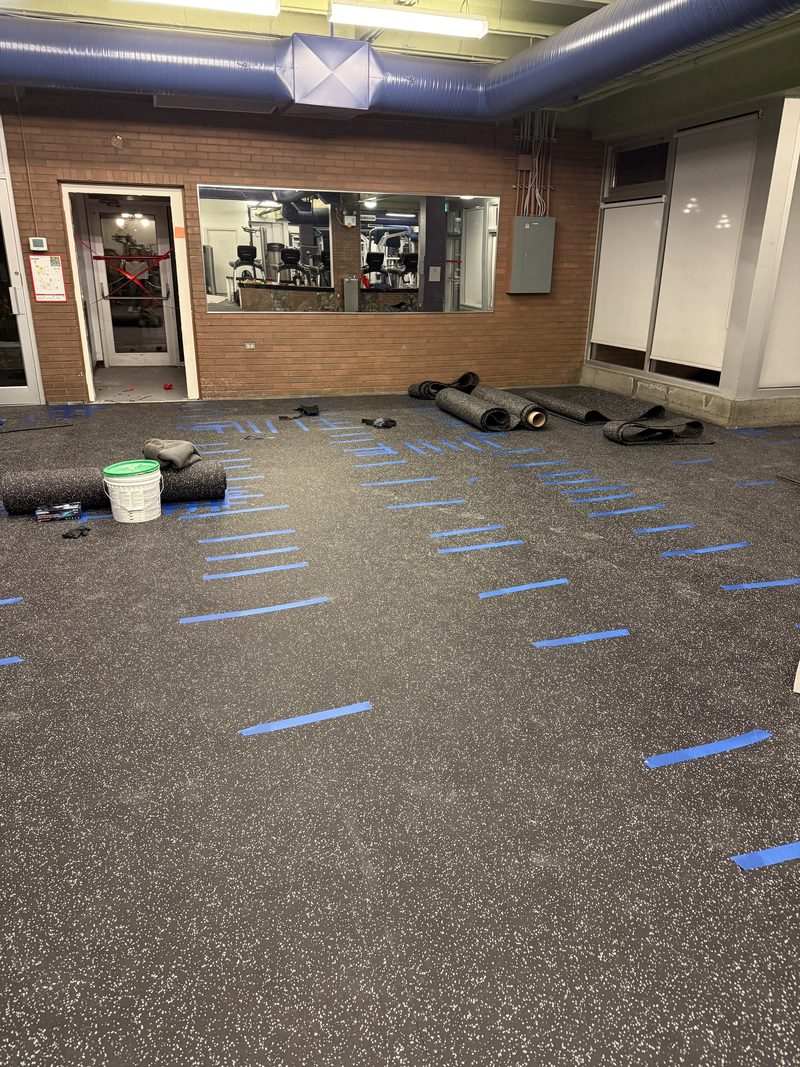

Glue-down
The standard for commercial rolls. The rubber is set into adhesive across the whole floor, with seams held tight while it cures. It does not creep, curl or shift under machines.
Loose-lay
Works for heavy interlocking tiles and some home gyms. Quicker and removable, but rolls laid loose tend to move and open at the seams over time.
Let it relax first
Rolls come off the truck tightly wound. Unrolling them and letting them settle before the final cut stops seams from pulling apart later.
Looking after a rubber floor
Rubber is low-maintenance, but the wrong cleaner can damage it.
Remove grit
Vacuum or dust-mop regularly. Grit under shoes acts like sandpaper on the surface.
Neutral cleaner
Damp-mop with a pH-neutral cleaner. Skip solvent- and oil-based products, which dry out the rubber.
Expect a smell at first
New recycled rubber has an odour that fades over a few weeks. Good ventilation speeds it up.
Frequently asked questions
How thick should rubber gym flooring be?
For cardio machines and general fitness, 1/4" (6 mm) is usually enough. For a strength area with free weights, 3/8" (8–10 mm) is a common choice. Where heavy weights are dropped from overhead, go to 3/4" tiles or more, often with a dedicated lifting platform on top.
Should rubber rolls be glued down?
In a commercial gym, yes, in most cases. Glue-down stops the rubber from creeping and keeps seams tight under heavy use. Heavy interlocking tiles and some home gyms can be loose-laid, but rolls left loose tend to shift and curl at the seams over time.
Can rubber flooring go over carpet?
No. Carpet and underpad compress unevenly, so the rubber will move and seams will open. The carpet should come out and the rubber go onto concrete or a sound, flat subfloor.
Does new rubber flooring smell?
Most recycled rubber has a noticeable smell when it is first installed. It fades over a few weeks with good ventilation. Unrolling the material and letting it air out before installation helps.
How do you clean a rubber gym floor?
Vacuum or dust-mop to remove grit, then damp-mop with a pH-neutral cleaner. Avoid solvent- or oil-based cleaners and harsh degreasers, which can dry out and damage the rubber surface.
Do you install rubber flooring outside the Lower Mainland?

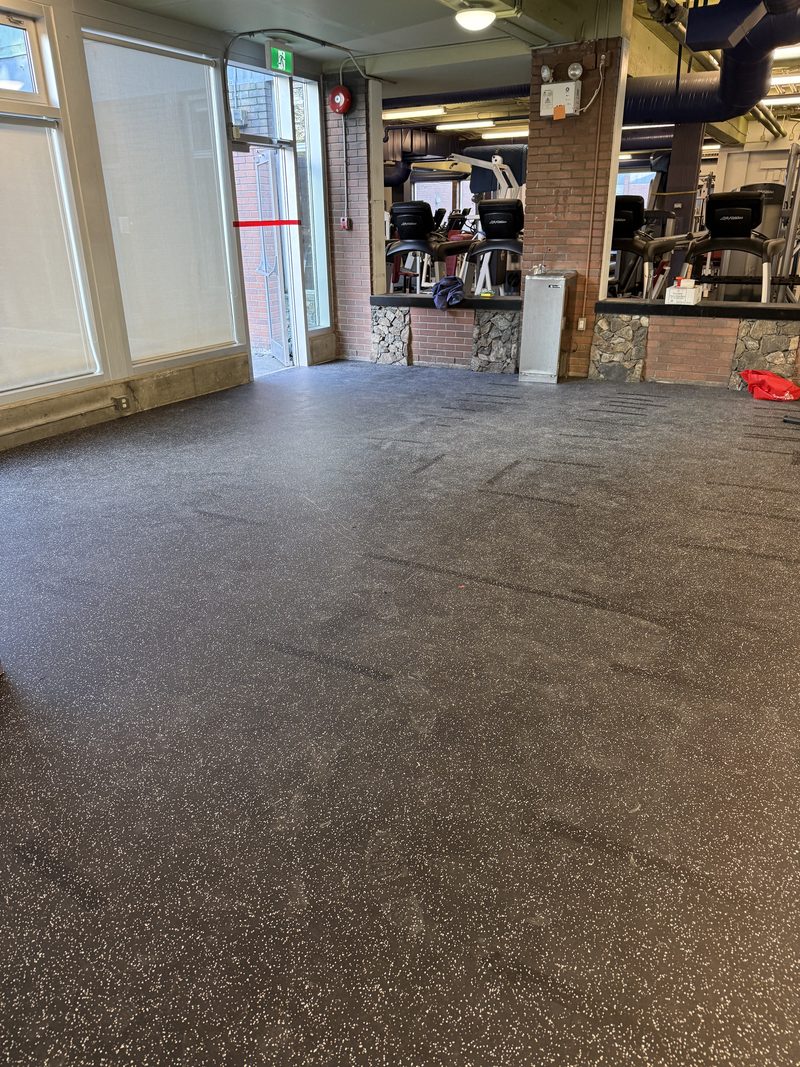

We are based in Coquitlam and work across Vancouver and the Lower Mainland. For larger commercial jobs we have travelled further; our most recent gym floor was in Victoria. Call 778 965 0206 to talk about your project.
